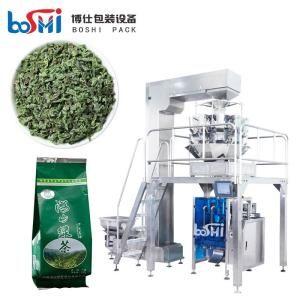

Spice Leaves Tea Leaves Packaging Machine Automatic For Gusseted Bag

Name: Spice Leaves Tea Leaves Packaging Machine Automatic For Gusseted Bag
Brand: BOSHI
Price: 5000 USD

Brand Name : BOSHI

Model Number : BS-420 BS-520 BS-720

Certification : CE SGS

Place of Origin : Guangdong, China

MOQ : One sets

Price : 5000USD-18500USD per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 sets per year

Delivery Time : 10-15 working days

Packaging Details : Standard three plywood wooden cases

Key Selling Points : All in one control system

Machine type : High speed packing machine

Key words : Automatic Tea Leaves Spice Leaves Gusseted Bag Packing Machine

Function : Wrapping, Labeling, Sealing, date printing

Packing speed : 5-60 bags/min

Dimension(L*W*H) : L 1350 * W 1000 * H 1400 mm

Packaging Type : Bags, Film, Foil

Voltage : 110v/220v/380v/440v

Film thickness : 0.03-0.1mm

Driven Type : Pneumatic

Machinery Test Report : Provided

Core Components : Motor, PLC, Servo driver etc

Warranty of core components : 1 Year

Contact Now

Automatic Tea Leaves Spice Leaves Gusseted Bag Packing Machine

Main Features:

1) World famous brand PLC control system, wide version touch screen, convenient to operate

2) Servo film pulling system, Pneumatic horizontal sealing. Better than the traditional one.

3) Perfect alarm system to reduce waste;

4) English and Chinese screen display, operation is simple, other language is acceptable.

5) Special design bag former, fold the roll film through the metal panael on both side smoothly.

6) Independent temperature control system, ensure the nice sealing shape and tightness.

Applications:

Suitable for frozen product, macaroni, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food like meat ball, chicken leg and etc.

Whole machine main including 5 parts:

Multihead weigher
BS-420 Packing machine
Z type product elevator
Working platform
Finished product conveyor

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

Spice Leaves Tea Leaves Packaging Machine Automatic For Gusseted Bag

Product Tags:

Spice Tea Leaves Packaging Machine

Tea Leaves Packaging Machine Automatic

Spice Leaves Tea Leaves Packaging Machine Automatic For Gusseted Bag Images
